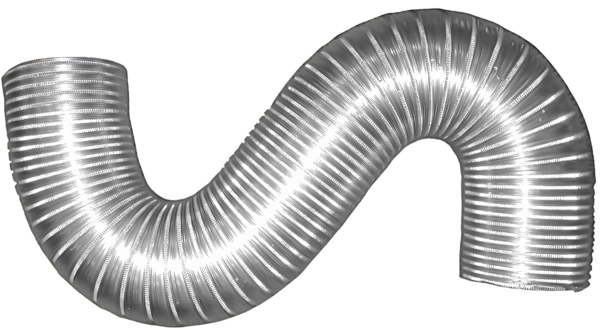

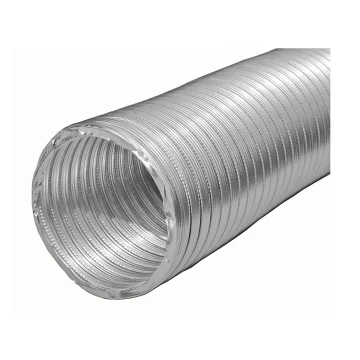

V220 Semi-Rigid Flexible Pipe Plain Ends
The V220 Semi-Rigid Flexible Aluminum Duct is a non-insulated Class 0 duct used as general purpose venting supply, return or exhaust
PRODUCT FEATURES
- Plain ends
- 8 ft length ships compressed to 23 in
PRODUCT SPECIFICATIONS
- Thinner wall than V230 PRO
- Semi-rigid corrugated spiral formed out of 100% aluminum alloy
- Non-combustible corrugated aluminum with continuous lockseams
- Class 0 metal duct, non-insulated
PERFORMANCE DATA
- Recommended Operating Pressure: Maximum positive and negative = 6” w.g.
- Maximum velocity: 5,000 FPM
- Operating Temp. Range: -100°F to +430°F
- Flame Speed: 0
- Smoke Developed: 0
| Model | Qty | Case# | Package | UPC | Label | Diameter | Length | Clamps | Each# |
|---|---|---|---|---|---|---|---|---|---|
| V220 | 10 | 110453 | Display Bag | 722048104532 | • | 3" | 8' | n/a | 10453 |
| V220 | 10 | 111583 | Display Tag | 722048115835 | • | 3" | 8' | n/a | 11583 |
| V220 | 20 | 011436 | Bulk | 722048104037 | 3" | 8' | n/a | 10403 | |
| V220 | 400 | 710403 | Skid | 722048104037 | 3" | 8' | n/a | 10403 | |
| V220 | 25 | 110420 | Bulk | 722048104204 | 3" | 20' | n/a | 10420 | |
| V220 | 25 | 110421 | Bulk | 722048104211 | 3" | 25' | n/a | 10421 | |
| V220 | 15 | 110400 | Bulk | 722048104006 | 4" | 5' | n/a | 10400 | |
| V220 | 180 | 610400 | Skid | 722048104006 | 4" | 5' | n/a | 10400 | |
| V220 | 12 | 110454 | Display Bag | 722048104549 | • | 4" | 8' | n/a | 10454 |
| V220 | 12 | 111584 | Display Tag | 722048115842 | • | 4" | 8' | n/a | 11584 |
| V220 | 12 | 110404 | Bulk | 722048104044 | 4" | 8' | n/a | 10404 | |
| V220 | 240 | 710404 | Skid | 722048104044 | 4" | 8' | n/a | 10404 | |
| V220 | 16 | 110429 | Bulk | 722048104297 | 4" | 20' | n/a | 10429 | |
| V220 | 16 | 110419 | Bulk | 722048104198 | 4" | 25' | n/a | 10419 | |
| V220 | 6 | 111585 | Display Tag | 722048115859 | • | 5" | 8' | n/a | 11585 |
| V220 | 6 | 110405 | Bulk | 722048104051 | 5" | 8' | n/a | 10405 | |
| V220 | 144 | 710405 | Skid | 722048104051 | 5" | 8' | n/a | 10405 | |
| V220 | 9 | 011440 | Bulk | 722048104150 | 5" | 10' | n/a | 10415 | |
| V220 | 9 | 110425 | Bulk | 722048104259 | 5" | 20' | n/a | 10425 | |
| V220 | 4 | 111586 | Display Tag | 722048115866 | • | 6" | 8' | n/a | 11586 |
| V220 | 4 | 011441 | Bulk | 722048104068 | 6" | 8' | n/a | 10406 | |
| V220 | 64 | 011442 | Skid | 722048104068 | 6" | 8' | n/a | 10406 | |
| V220 | 12 | 110416 | Bulk | 722048104167 | 6" | 10' | n/a | 10416 | |
| V220 | 12 | 110822 | Display Tag | 722048108226 | • | 6" | 10' | n/a | 10822 |
| V220 | 6 | 011443 | Bulk | 722048104266 | 6" | 20' | n/a | 10426 | |
| V220 | 4 | 111587 | Display Tag | 722048115873 | • | 7" | 8' | n/a | 11587 |
| V220 | 40 | 011444 | Bulk | 722048104075 | 7" | 8' | n/a | 10407 | |
| V220 | 8 | 110417 | Bulk | 722048104174 | 7" | 10' | n/a | 10417 | |
| V220 | 8 | 110823 | Display Tag | 722048108233 | • | 7" | 10' | n/a | 10823 |
| V220 | 4 | 111588 | Display Tag | 722048115880 | • | 8" | 8' | n/a | 11588 |
| V220 | 4 | 011447 | Bulk | 722048104082 | 8" | 8' | n/a | 10408 | |
| V220 | 48 | 011449 | Skid | 722048104082 | 8" | 8' | n/a | 10408 | |
| V220 | 6 | 110418 | Bulk | 722048104181 | 8" | 10' | n/a | 10418 | |
| V220 | 6 | 110824 | Display Tag | 722048108240 | • | 8" | 10' | n/a | 10824 |
| V220 | 12 | 110459 | Display Bag | 722048104594 | • | 4" | 8' | 2 steel screw clamps | 10459 |
