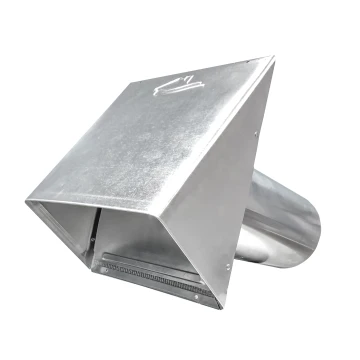

AWM628 Aluminum Heavy Gauge Hood with flapper and 1/8-in Screen
The AWM628 is a heavy duty aluminum wide mouth wall vent hood.
Product Features
- Flapper with channel for sound dampening foam (not included)
- 1/8" x 1/8" screen mechanically inserted and removable
- 4 mounting holes for secure connections
Product Specifications
- 020 aluminum, meets most building codes
- Riveted construction
- Tailpipe connected with 360˚ mechanical seam
- Mouth opening exceeds pipe area
| Model | Tail | Flapper | Screen | Each # | Qty | Case # | Package | UPC | A(in.) | B(in.) | C(in.) | D(in.) | E(in.) | Open Area | Diameter |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AWM628 | 11" | flapper | 1/8" x 1/8" removable | 12250 | 6 | 112550 | bulk | 722048125506 | 15.75 | 8.25 | 10 | 11 | 5.375 | 40 | 5" |
| AWM628 | Flush | flapper | 1/8" x 1/8" removable | 12554 | 2 | 112554 | bulk | 722048125544 | 6.25 | 12.25 | 14.25 | n/a | 7 | 80 | 10" |
