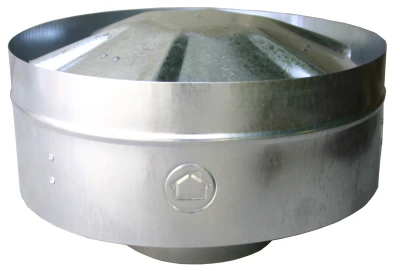

Broad Band Siphon Ventilator™
Heavy duty galvanized steel roof vent cap to efficiently evacuate fumes from flues or pipes. This cap provides maximum protection from the weather and creates a strong siphoning action which helps prevent downdrafts.
SPECIFICATIONS
- 26 Gauge Galvanized steel construction for corrosion resistance
- Fits into a Type B gas vent
- Ribbed cap and wide band
- Large unrestricted outlet
| Model | UPC | Label | Tail Collar Diameter | 5mph wind | Overall Diameter | Height | Each# | Qty | Case# | Package |
|---|---|---|---|---|---|---|---|---|---|---|
| Broad Band Siphon Ventilator | 722048109391 | • | 3" | 2500 | 11" | 6" | 10939 | 1 | 010939 | Ind. Box |
| Broad Band Siphon Ventilator | 722048109407 | • | 4" | 3000 | 11" | 6" | 10940 | 1 | 010940 | Ind. Box |
| Broad Band Siphon Ventilator | 722048109414 | • | 5" | 3500 | 15" | 7.5" | 10941 | 1 | 010941 | Ind. Box |
| Broad Band Siphon Ventilator | 722048109421 | • | 6" | 4000 | 15" | 7.5" | 10942 | 1 | 010942 | Ind. Box |
| Broad Band Siphon Ventilator | 722048109438 | • | 7" | 5200 | 15" | 7.5" | 10943 | 1 | 010943 | Ind. Box |
| Broad Band Siphon Ventilator | 722048109445 | • | 8" | 6500 | 15" | 7.5" | 10944 | 1 | 010944 | Ind. Box |
| Broad Band Siphon Ventilator | 722048109452 | • | 9" | 7500 | 20" | 10" | 10945 | 1 | 010945 | Ind. Box |
| Broad Band Siphon Ventilator | 722048109469 | • | 10" | 8400 | 20" | 10" | 10946 | 1 | 010946 | Ind. Box |
| Broad Band Siphon Ventilator | 722048109476 | • | 12" | 9600 | 20" | 10" | 10947 | 1 | 010947 | Ind. Box |
