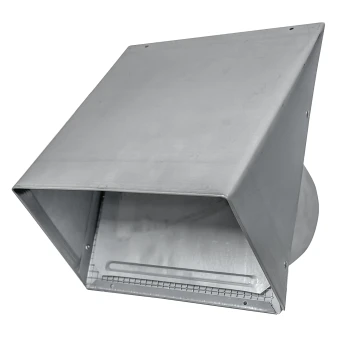

GWM724 P-Tanium™ Paintable Heavy Gauge Hood with Flapper and 1/4-in Screen
The GWM724 is a galvanized wall vent hood made with heavy duty P-Tanium™ paintable galvanized steel. The dark gray matte finish can be left unpainted if desired.
PRODUCT FEATURES
- Flapper with channel for sound dampening foam (foam not included)
- ¼" × ¼" screens mechanically inserted and removable
- 4 mounting holes for secure connections
- Plain face (no logo)
PRODUCT SPECIFICATIONS
- 26 gauge P-Tanium™ paintable galvanized steel
- Riveted construction
- Tailpipe connected with 360˚ mechanical seam
- Mouth opening exceeds pipe area
| Model | A (in.) | B (in.) | C (in.) | D (in.) | E (in.) | Open Area | Dia. | Tail | Flapper | Screen | Each # | Qty | Case # | Pkg | UPC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GWM724 | 3.375 | 5.25 | 7 | n/a | 4 | 18.75 | 4" | n/a | flapper | ¼"x¼" removable | 12420 | 20 | 112420 | Bulk | 722048124202 |
| GWM724 | 3.375 | 5.25 | 7 | n/a | 4 | 18.75 | 4" | n/a | flapper | ¼"x¼" removable | 12420 | 480 | 612420 | Skid | 722048124202 |
| GWM724 | 8.875 | 5.25 | 7 | 5.5 | 4 | 18.75 | 4" | 6" | flapper | ¼"x¼" removable | 12210 | 12 | 112210 | Bulk | 722048122109 |
| GWM724 | 14.5 | 5.25 | 7 | 11.25 | 4 | 18.75 | 4" | 11" | flapper | ¼"x¼" removable | 12211 | 12 | 112211 | Bulk | 722048122116 |
| GWM724 | 4.5 | 8.25 | 10 | n/a | 5.375 | 40 | 5" | n/a | flapper | ¼"x¼" removable | 12519 | 12 | 112519 | Bulk | 722048125190 |
| GWM724 | 10.25 | 8.25 | 10 | 5.5 | 5.375 | 40 | 5" | 6" | flapper | ¼"x¼" removable | 12520 | 12 | 112520 | Bulk | 722048125206 |
| GWM724 | 15.75 | 8.25 | 10 | 11.25 | 5.375 | 40 | 5" | 11" | flapper | ¼"x¼" removable | 12521 | 6 | 112521 | Bulk | 722048125213 |
| GWM724 | 4.5 | 8.25 | 10 | n/a | 5.375 | 40 | 6" | n/a | flapper | ¼”x¼” removable | 12522 | 12 | 112522 | Bulk | 722048125220 |
| GWM724 | 4.5 | 8.25 | 10 | n/a | 5.375 | 40 | 6" | n/a | flapper | ¼”x¼” removable | 12522 | 360 | 612522 | Skid | 722048125220 |
| GWM724 | 10.25 | 8.25 | 10 | 5.5 | 5.375 | 40 | 6" | 6" | flapper | ¼"x¼" removable | 12523 | 12 | 112523 | Bulk | 722048125237 |
| GWM724 | 10.25 | 8.25 | 10 | 5.5 | 5.375 | 40 | 6" | 6" | flapper | ¼"x¼" removable | 12523 | 120 | 712523 | Skid | 722048125237 |
| GWM724 | 15.75 | 8.25 | 10 | 11.25 | 5.375 | 40 | 6" | 11" | flapper | ¼"x¼" removable | 12524 | 6 | 112524 | Bulk | 722048125244 |
| GWM724 | 4.5 | 8.25 | 10 | n/a | 5.375 | 40 | 7" | n/a | flapper | ¼”x¼” removable | 12525 | 12 | 112525 | Bulk | 722048125251 |
| GWM724 | 10.25 | 8.25 | 10 | 5.5 | 5.375 | 40 | 7" | 6" | flapper | ¼"x¼" removable | 12526 | 12 | 112526 | Bulk | 722048125268 |
| GWM724 | 15.75 | 8.25 | 10 | 11.25 | 5.375 | 40 | 7" | 11" | flapper | ¼”x¼” removable | 12527 | 6 | 112527 | Bulk | 722048125275 |
| GWM724 | 4.5 | 10.25 | 11.25 | n/a | 5.5 | 52 | 8" | n/a | flapper | ¼”x¼” removable | 12084 | 12 | 112084 | Bulk | 722048120846 |
| GWM724 | 10.25 | 10.25 | 11.25 | 5.5 | 5.5 | 52 | 8" | 6" | flapper | ¼”x¼” removable | 12242 | 10 | 112242 | Bulk | 722048122420 |
| GWM724 | 16 | 10.25 | 11.25 | 11.25 | 5.5 | 52 | 8" | 11" | flapper | ¼”x¼” removable | 12323 | 6 | 112323 | Bulk | 722048123236 |
