Periscope 18-29-in

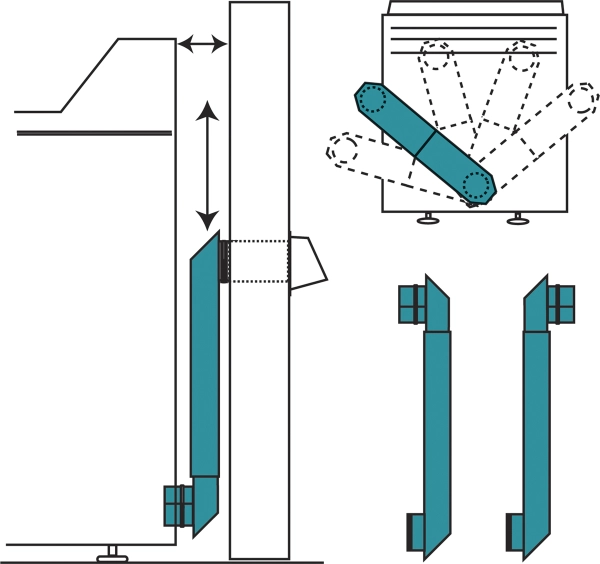

The 18-29” Periscope is a rigid aluminum clothes dryer duct which telescopes to the top of most dryers.
PRODUCT FEATURES
- Reaches the side of most dryers
- Two piece assembly
- Sections are reversible, for airflow same or opposite
- Smooth interior decreases air friction
PRODUCT SPECIFICATIONS
- 2” x 6” rigid aluminum
- 4” Draw band swiveling female collar
- 4” Crimped swiveling snap-lock male fitting
RECOMMENDATIONS
- The International Mechanical Code recommends rigid metal duct for dryer exhaust as well as in-wall exhaust. IMC 504.6.1 & 504.8-3
- Dryer manufacturers specify “Only rigid or flexible metal vent shall be used for exhausting. Do not use plastic or metal foil vent.”
PERFORMANCE DATA AND AIRFLOW
- Pressure Rating: Positive: 6” WC max Negative: 6” WC max
- Maximum velocity: 5,000 FPM
- Operating Temp. Range: -100˚F to+ 430˚F
- Flame Spread: 0
- Smoke Developed: 0
INSTALLATION: (Installation instructions are included inside each carton.)
Periscopes provide nearly the same airflow properties as one semi-rigid metal flexible pipe with two Close Elbows®.
| Model | Length | Each # | Qty | Case # | Package | UPC | Label |
|---|---|---|---|---|---|---|---|
| Periscope | 18-29" | 10173 | 4 | 110173 | Display Box | 722048101739 | • |
| Periscope | 18-29" | 10173 | 123 | 710173 | Skid | 722048101740 | • |
| Periscope | 18-29" | 10133 | 4 | 110133 | Display Bag | 722048101333 | • |
| Periscope | 18-29" | 10133 | 9 | 010153 | Display Bag | 722048101533 | • |
| Periscope | 18-29" | 10114 | 9 | 110114 | Bulk | 722048101142 | |
| Periscope | 18-29" | 10114 | 180 | 710114 | Skid | 722048101143 | |
| Periscope | 18-29" | 10116 | 4 | 110116 | Ind. Box | 722048101166 | • |
| Periscope | 18-29" | 10116 | 120 | 710116 | Skid | 722048101167 | • |
| Periscope | 18-29" UL® | 12277 | 4 | 112277 | Ind. Box | 722048122772 | • |
