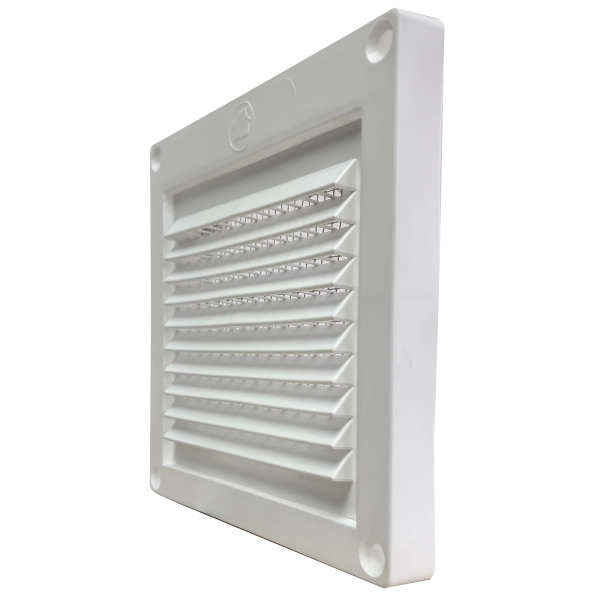

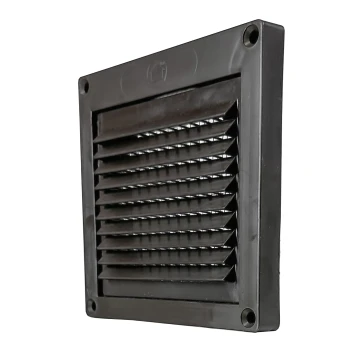

PFL348 Plastic Fixed Louver Mini Louver Hood with 1/8-in Screen
The PFL348 Mini Louver Hood features a 1/4" x 1/4" molded fixed louver grid and a 1/8" x 1/8" wire mesh screen for extra protection against pests.
PRODUCT SPECIFICATIONS
- Polypropylene molded plastic
- 4 mounting holes
- 1/4" x 1/4 molded fixed louver grid plus 1/8" x 1/8" wire mesh screen under the fixed louver
- Available flush and with snap ring
RECOMMENDATION
The PFL348 is good for eave and side wall venting.
The PFL3428 can be used as intake or exhaust.
Not recommended for dryer venting.
FLUSH

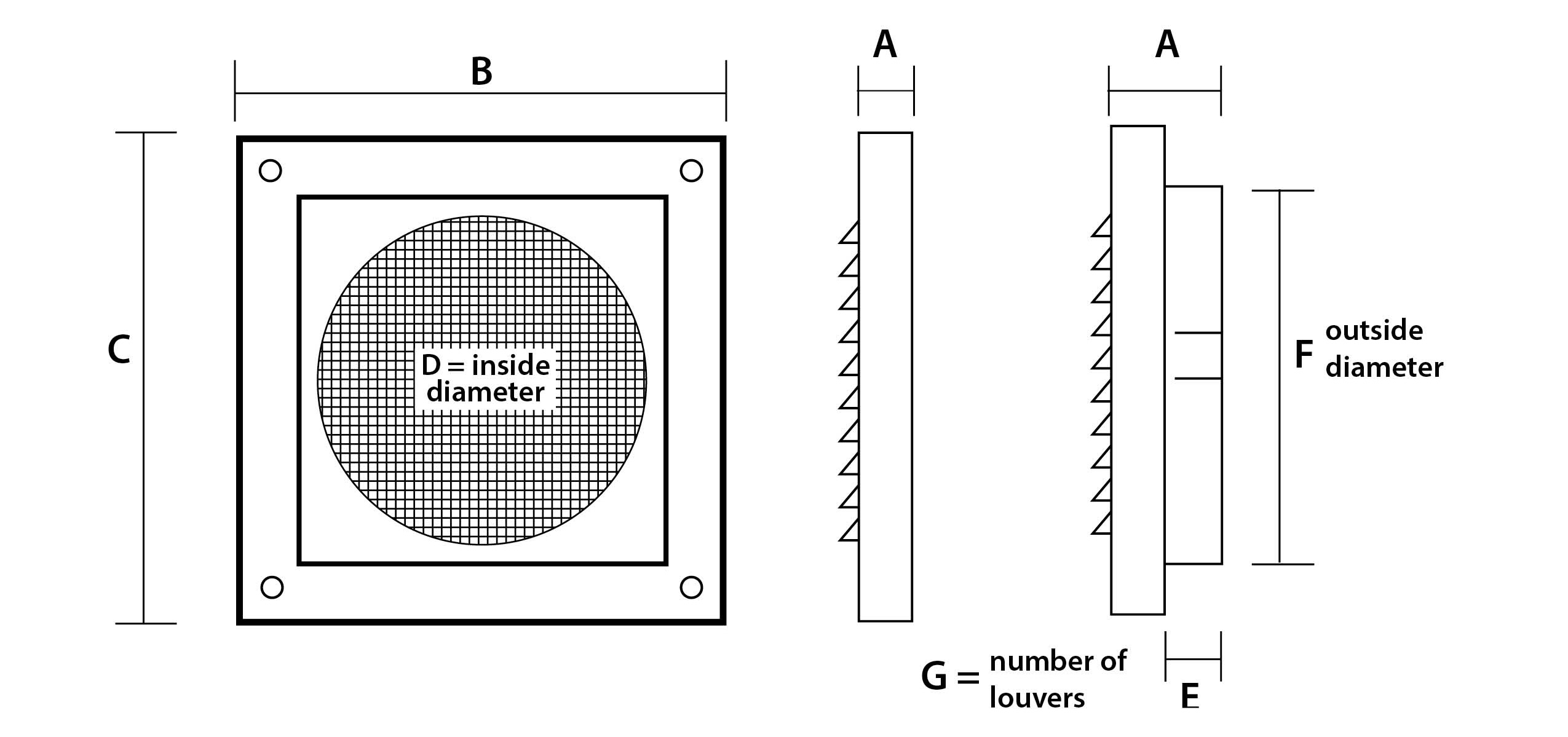

| Dia | A | B | C | D | E | F | G | Molded Fixed Louvre Grid | Wire Mesh Screen |
| 4" | .625 | 5.5 | 5.5 | 4 | n/a | 4.25 | 10 | 1/4" x 1/4" | 1/8" x 1/8" |
SNAP RING
| Dia | A | B | C | D | E | F | G | Molded Fixed Louvre Grid | Wire Mesh Screen |
| 4" | 1.25 | 5.5 | 5.5 | 4 | .625 | 4.25 | 10 | 1/4" x 1/4" | 1/8" x 1/8" |
| Model | Dia. | Tail | Color | Each # | Qty | Case # | Package | UPC |
|---|---|---|---|---|---|---|---|---|
| PFL348 | 4" | flush | White | 12344 | 12 | 112344 | Bulk | 722048123441 |
| PFL348 | 4" | flush | Brown | 12345 | 12 | 112345 | Bulk | 722048123458 |
| PFL348 | 4" | snap ring | White | 10754 | 12 | 110754 | Bulk | 722048107540 |
| PFL348 | 4" | snap ring | White | 10754 | 648 | 710754 | Skid | 722048107540 |
| PFL348 | 4" | snap ring | Brown | 10974 | 12 | 110974 | Bulk | 722048109742 |
Additional Images
