Trim Plates — Aluminum and Galvanized
Trim plates for through wall vent hoods help finish off the interior side of the hood installation.
PRODUCT SPECIFICATIONS
- Aluminum trim plate for: aluminum hoods AWM3XX and ASM3XX and plastic hoods PWM6XX and PML3XX
- Galvanized trim plate for: GWM4XX
- Features curved edges and 1/4" hem inside cutout for smooth insertion
- Exception: 10912 has squared edges and no hem inside cutout
| Model | Diameter | Material | Overall Size | Each # | Qty | Case # | Package | UPC |
|---|---|---|---|---|---|---|---|---|

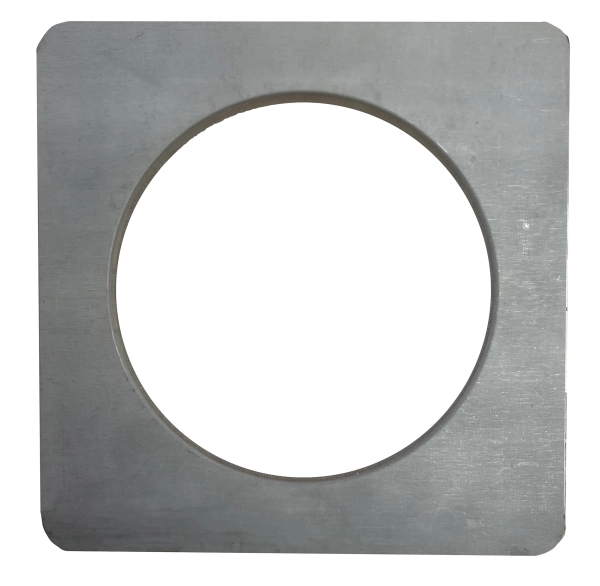

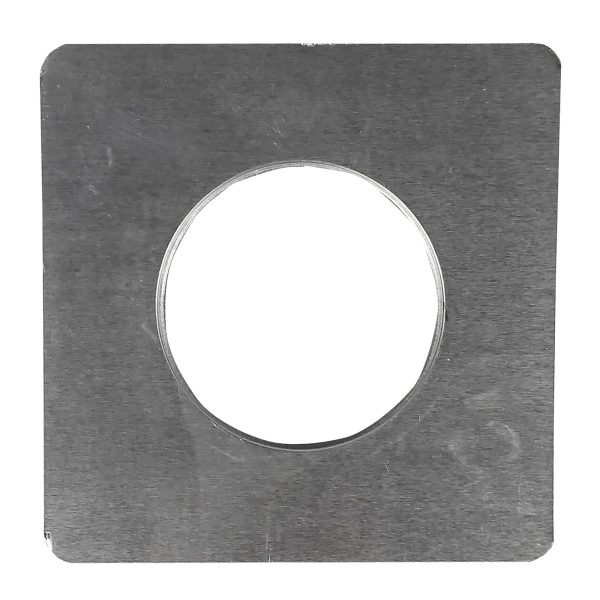

| Trim Plate | 3" | Aluminum | 5.625" x 5.625" | 10126 | 100 | 110126 | Bulk | 722048101265 |
| Trim Plate | 4" | Aluminum | 5.625" x 5.625" | 10122 | 100 | 110122 | Bulk | 722048101227 |

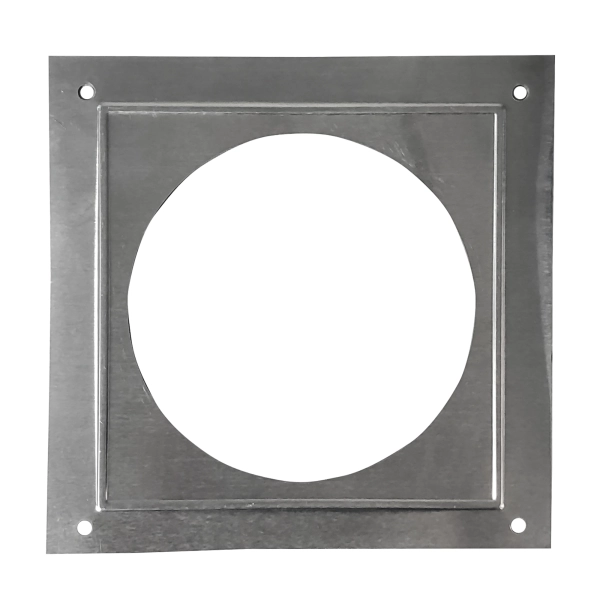

| Trim Plate | 4" | Aluminum | 6" x 6" with 4 mounting holes | 10912 | 100 | 110912 | Bulk | 722048109124 |
| Trim Plate | 3" | P-Tanium™ Galvanized | 5.625" x 5.625" | 10056 | 100 | 110056 | Bulk | 722048100565 |
| Trim Plate | 3" | P-Tanium™ Galvanized | 5.625" x 5.625" | 10057 | 100 | 110057 | Bulk | 722048100572 |
